Cryo Transdermal

Delivery System + Heating

Electroporation function enhance penetration rate of any kind of solution.

Cooling probe delivers targeted cryo therapy to calm the skin, reduce redness and inflammation, minimize downtime, and provide immediate soothing and pore tightening effects.

Patented design handpieace compatible with 3cc and 5cc syringe holders.

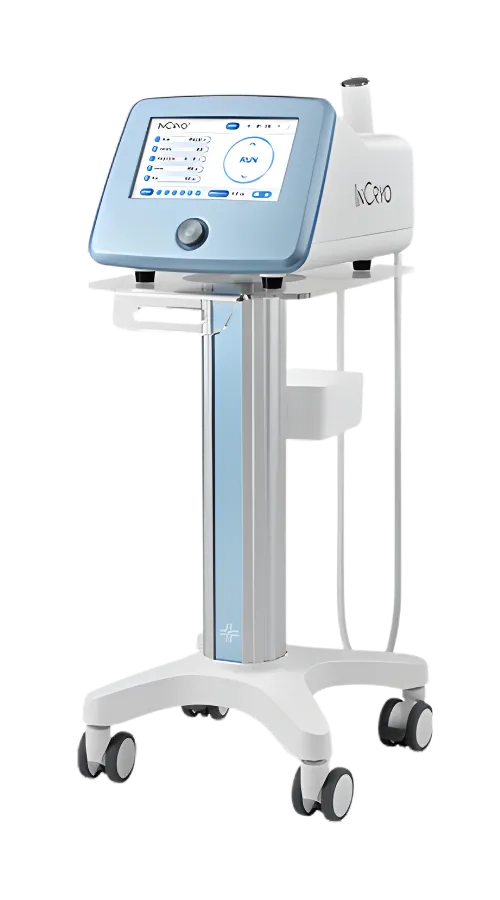

Machine

Short Description

Advanced cryo-electroporation system that combines controlled cooling and electroporation to enhance transdermal delivery of active ingredients while calming and conditioning the skin

Positioning

Post-treatment calming, inflammation control, skin brightening support, enhanced absorption of actives, and recovery after energy-based procedures

Key Highlights

1. Cryo cooling rapidly calms skin, reduces inflammation, and lowers the risk of post-treatment pigmentation

2. Electroporation temporarily opens micro-channels in the skin to improve absorption of topical active ingredients

3. Ideal add-on system that enhances results of lasers, HIFU, RF, and facial treatments with high repeat usage

Price (1pc)

₱350,000.00

Suggested Treatment Price

₱2,500.00

Estimated Cost per Treatment

₱250.00

Gross Margin per Treatment

₱2,250.00

90.00%

Monthly Revenue Sample (40 Clients)

₱100,000.00

Estimated Monthly Gross Profit

₱90,000.00

ROI Estimate (in months)

3.89

8.75

Normalized with 50% OPEX Contribution

Technical Specification

Specification

Details

Intensity

0–100 (1 step)

Mode

PULSE +: 0.5 kHz–10 kHz

PULSE −: 0.5 kHz–10 kHz

Time

1 min–20 mins (1 min step)

Temperature

COLD: −20°C–20°CHOT: 30°C–45°C

Type

Water Cooling with TEC

Rating Voltage

100–240 V

Rating Frequency

50/60 Hz

Power Consumption

130 W max

Dimension

325 × 450 × 250 mm (W × D × H)

Weight

7 kg
